Binding method

Smyth-sewn binding: signatures sewn and cased

Also called: Smyth sewing, section-sewn binding.

Published · Reviewed

Smyth-sewn binding, also called section-sewn binding, sews thread through the fold of each signature and loops it into the stitching of the signature before it, then reinforces the assembled, sewn block with adhesive before it goes under a covered spine.

  • Opens flatYes
  • Fold-backNo
  • EditableNo

How Smyth-sewn binding opens

Smyth-sewn bindingSignatures flexing — each sewn signature flexes at its own fold, linked to its neighbors by thread
Representative schematic — not to scale.
Signatures flexing — each sewn signature flexes at its own fold, linked to its neighbors by thread

Drag to open the book. With the slider focused: ←/→ moves 1%, Shift+←/→ 5%, PgUp/PgDn jumps to the next state, Home/End to closed or fully open.

Closed state (shown without JavaScript)
Smyth-sewn binding — closedClosed — sewn signatures stacked inside the covered spine, thread hidden beneath the cover
Closed — Smyth-sewn binding. Representative schematic — not to scale.

Opening states

  1. 1. Closed

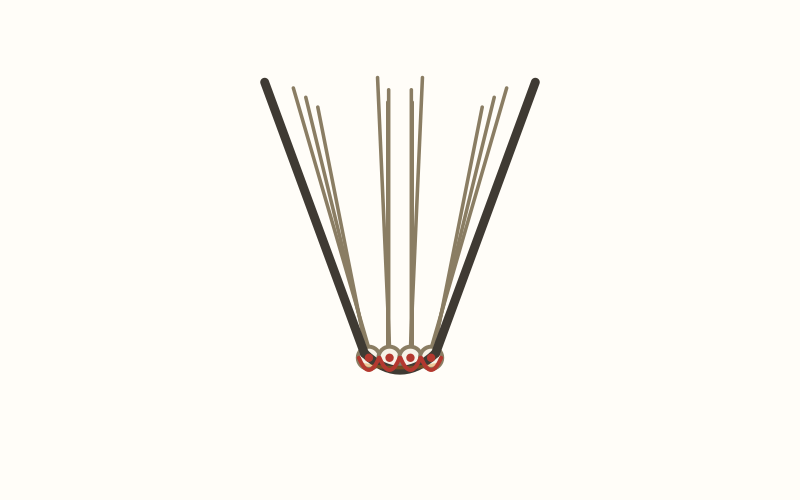

  2. 2. Cover lifting
  3. 3. Signatures flexing
  4. 4. Practical open

Recognize it

How to recognize Smyth-sewn binding

Typically used for: Printing Partners' Smyth-sewn page lists textbooks, journals, premium publications and heirloom or keepsake volumes as typical candidates, the kind of book opened and referenced again and again over a long life.

  • Thread visible along the inside fold at the center of each signature when the book is opened wide.
  • Folded signatures nested one inside another rather than loose single sheets stacked flat.
  • A covered, reinforced spine that hides the thread and its adhesive backing from view.

Terms used here: board, bolt, cover, creep, endpaper, fold, fold-back, fore edge, head and tail, hinge, joint, kettle stitch, leaf, opens flat, sewing station, sheet, signature, spine, text block

Mechanics

What moves when it opens

Because each signature carries its own line of thread, the sewn block flexes at every fold rather than along one continuous glued edge.

The reinforcing adhesive strengthens that sewn block without replacing the thread as the actual joining mechanism; it's a support layer, not the primary bond.

The covered spine hinges as a single reinforced unit, with the thread and its adhesive backing hidden from view the whole time the book is open.

Advantage Bookbinding's guide says a Smyth-sewn book still lies flat years after it was bound and its pages resist falling out over that time; Printing Partners puts that same book's durability at up to thousands of openings.

Anatomy

Smyth-sewn binding anatomy: pages, cover, adhesive, thread

  1. Pages: The individual leaves, or folded signatures, that make up the text block.
  2. Cover: The outer wrap or boards enclosing the text block.
  3. Adhesive: The flexible glue bonding the spine.
  4. Thread: The stitching that links folded signatures together.

At a glance

Smyth-sewn binding at a glance

Sheet organizationMultiple signatures
Joining mechanismthread sewn through the fold of each signature and looped into the corresponding stitch of the adjacent signature, with adhesive reinforcing the assembled spine before casing
SpineCovered
Opens flat?Yes. The sewn, reinforced spine supports the book lying flat.
Fold-back?No
Editable after binding?No. The signatures are sewn and cased into a permanent block.

See how all eleven compare on opening flat

Compare

Smyth-sewn binding vs. perfect binding and lay-flat binding

  • Often confused with

    Perfect binding

    Smyth-sewn's thread lets each signature flex on its own fold; perfect binding's spine, glued as a single unit with no folds inside it, can't. Both still finish under a covered, printable spine, which is exactly why they're mistaken for each other.

  • Often confused with

    Lay-flat binding

    Smyth-sewn's stitched signatures and lay-flat's floating cover liner solve the same problem, opening well, in unrelated ways: one sews through every fold, the other lets the cover spine move independently of the text block.

  • By contrast

    Japanese stab binding

    Side-sewn loose sheets restrict how far Japanese stab binding opens, exactly the limitation Smyth-sewn avoids: its thread runs through an actual fold in every signature, letting the sewn block lie flat instead.

  • See also

    Coptic binding

    Both sew folded signatures through the fold, but Smyth-sewn hides its thread inside a covered, adhesive-reinforced spine, while Coptic leaves the chain stitch exposed along an open spine and sews the boards on with the same thread.

Compare Smyth-sewn binding with perfect bindingor pick any two bindings

Read the comparison: Smyth-sewn vs. perfect binding

Variations

Variations and limitations

Signature size (commonly a folded set of sheets rather than single leaves) and thread tension both vary by binder and affect exactly how the sewn block behaves.

A related process, Smyth-Cleat, saws slots across a planed spine and laces thread through them instead of sewing through the folds: a different mechanism under a similar trade name, not shown here.

Some Smyth-sewing lines add a per-signature camera check during the machine process, verifying each signature as it's sewn into the block.

Representative machine-sewn signature block under a covered spine shown, not to scale.

Limits of this schematic

  • Representative machine chain-stitched signature block shown; the related Smyth-Cleat process saws cleats across a planed spine and laces thread through them instead of sewing through folds, and is not depicted here.
  • Signature size (commonly 16-24 pages) and thread tension vary by binder and affect how readily the book lies flat.

Background: Smyth-sewn binding is named for David McConnell Smyth, an Irish American inventor who turned from machines that sewed cloth and shoes to machines that could sew books, patented his first book-sewing machine in 1868, and later replaced straight needles with curved ones that could stitch each signature to the one before it.

FAQ

Frequently asked questions

Is Smyth-sewn the same as section-sewn?

Yes, in trade usage. Section-sewn names the same sewn-signature construction whether the sewing is done by hand or by machine; Smyth-sewn is the machine form of it, and the sewing itself does not change with the label. Foliofox's own guide confirms the two terms describe one construction, not two competing methods.

How is Smyth sewing different from hand sewing?

Smyth sewing is machine sewing: a hook-needle draws thread up through each signature's fold and through the loop left by the signature sewn before it. Hand sewing follows that same fold-and-loop logic, just guided by a person instead of a machine.

Does Smyth-sewn binding lay flat?

Yes. Each signature carries its own line of thread, so the sewn block flexes at every fold instead of along one continuous glued edge, and the reinforcing adhesive backs that flexible block up without replacing thread as the actual joining mechanism. That fold-by-fold flex, not a single rigid spine, is what lets the whole sewn block lie flat once it's open. See which bindings open flat.

What is the difference between Smyth-sewn and perfect binding?

Smyth-sewn sews thread through the fold of every signature and loops it into the signature before it, so the block flexes fold by fold under a covered spine. Perfect binding skips sewing entirely: it grinds loose pages flat at the edge and glues them straight into the cover, leaving one stiff glued unit with no folds inside it to flex. See Smyth-sewn vs. perfect binding for the full comparison.

References

Key references

Every claim on this page traces to a fetched source, recorded with its URL and access date in the project's research files; Methodology explains how sources are checked. Last reviewed 2026-09-07.
