Binding method

Screw-post binding: posts through punched holes

Also called: Chicago screw binding, post screw binding, thesis binding.

Published 2026-09-09 · Reviewed 2026-09-08

Screw-post binding, also called Chicago screw or thesis binding, clamps loose pages and covers together with two-piece metal posts that thread through punched holes near one edge, leaving the post heads visibly exposed along that edge.

Opens flatPartially
Fold-backNo
EditableYes

How screw-post binding opens

Representative schematic — not to scale.

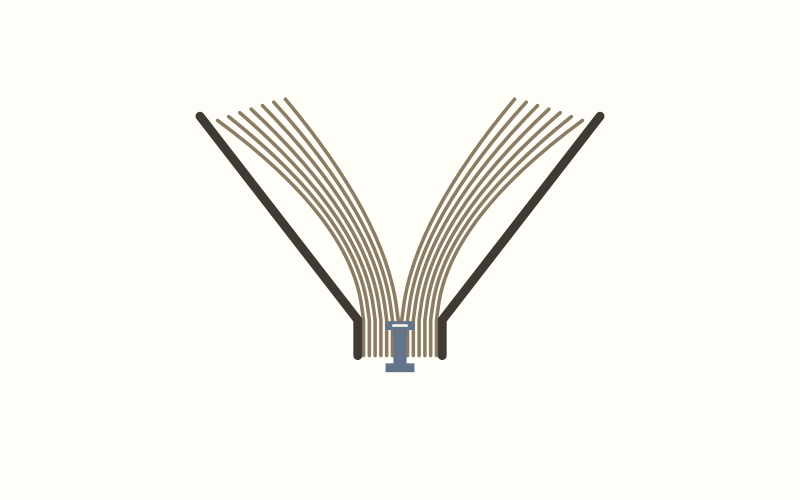

Pages restricted — leaves pivot only as far as the clamped post zone allows

Drag to open the book. With the slider focused: ←/→ moves 1%, Shift+←/→ 5%, PgUp/PgDn jumps to the next state, Home/End to closed or fully open.

Closed state (shown without JavaScript)

Closed — Screw-post binding. Representative schematic — not to scale.

Opening states

1. Closed

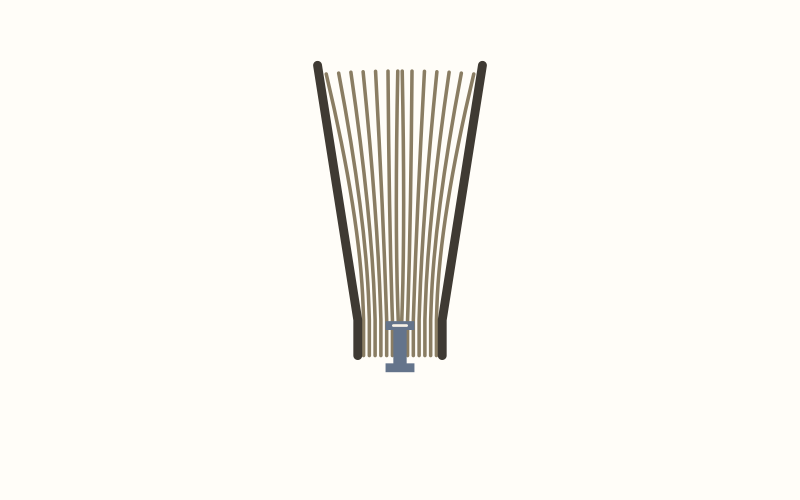

2. Cover lifting
3. Pages restricted

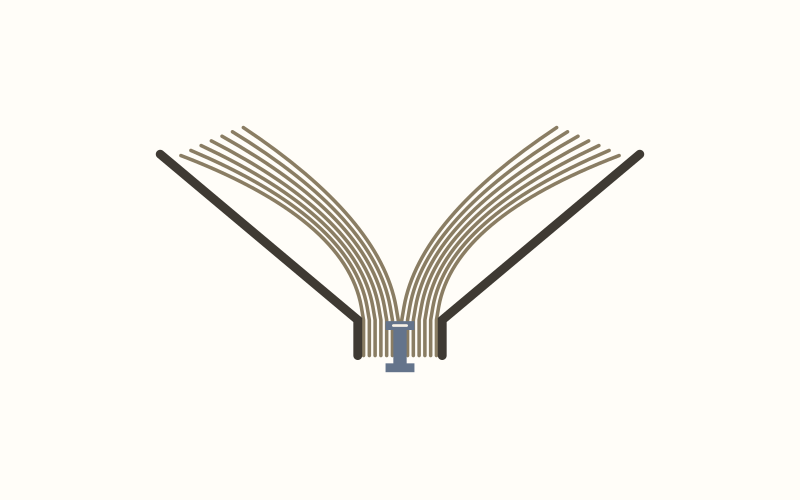

4. Practical open

Recognize it

How to recognize screw-post binding

Typically used for: Sample books, menus, photo albums, architectural drawings, leather goods, presentations, blueprints and journals are typical uses of screw-post binding, mybinding's product page notes, and ironmarkusa's guide separately lists thesis binding as another name for the format.

A straight row of large punched holes runs near one edge, through every cover and page in the stack.
Each hole holds a two-piece post: a barrel driven in from one side, capped with a screw-in top from the other.
The screw heads and caps stay visible on the outside faces of the covers, not tucked inside a spine.
No glue line, thread or spine covering runs along that edge, just the row of exposed posts.

Terms used here: cover, creep, fold, fold-back, fore edge, head and tail, hinge, joint, opens flat, post, punched holes, sheet, spine

Mechanics

What moves when it opens

The posts hold the whole stack rigid at the punched holes, so pages pivot only around that fixed zone rather than opening the way a spine-based binding does.

Getting the book to open well near that edge takes deliberate preparation, scoring the pages and leaving a small hinge gap in the cover, not something the posts do on their own.

Because the posts unscrew, the whole stack can be taken apart at that same fixed zone, which is the trade-off for the restricted opening.

Anatomy

Screw-post binding anatomy: pages, cover, hardware

Pages: The individual leaves, or folded signatures, that make up the text block.
Cover: The outer wrap or boards enclosing the text block.
Hardware: The metal or plastic fastening element running through the punched or drilled holes.

At a glance

Screw-post binding at a glance

Sheet organization	Loose leaves
Joining mechanism	two-piece barrel-and-cap posts pass through punched holes near one edge, clamping the cover and page stack together
Spine	Posts exposed
Opens flat?	Partially. Pages open only as far as the clamped post zone allows near that edge.
Fold-back?	No
Editable after binding?	Yes. The posts unscrew so pages can be added, removed or reordered.

See how all eleven compare on opening flat

Compare

Screw-post binding vs. Japanese stab binding and spiral binding

Often confused with
Japanese stab binding
Rigid metal posts do the clamping on screw-post, not thread: two-piece posts fix a zone near one edge, while Japanese stab holds the same kind of zone with sewn thread through punched holes instead.
Often confused with
Spiral binding
Screw-post's rigid two-piece posts and spiral's coil both pass metal near the same punched edge, but that's where the resemblance ends: screw-post clamps the stack still, while spiral lets every page spin freely around it.
By contrast
Saddle stitch binding
Saddle stitch has no punched holes or posts at all; the fold itself does the work, a completely different opening mechanism from screw-post's clamped, post-pivoted stack.

Compare screw-post binding with Japanese stab binding or pick any two bindings

Variations

Variations and limitations

Post length scales with stack thickness; mybinding's product listing gives a length range from 1/8 inch up to 5 inches, and a companion page on screw posts notes separate extension pieces that screw in between the barrel and cap to reach a thicker stack.

Mybinding's binding guide notes the holes fit a standard 3-hole punch pattern, so a stack already punched for a ring binder works for screw posts too, without repunching.

Mybinding's product listing for screw posts also names aluminum, brass and plastic as material options, in finishes running from silver and black to gold and white.

Representative three-post punched layout shown, not to scale.

Limits of this schematic

Representative 3-hole Chicago-screw layout shown; post length/extensions and hole spacing vary by stack thickness and binder.
Flat opening near the bound edge is not automatic — it requires scoring the pages and leaving a cover hinge gap; without that, the clamped posts restrict how far the book opens.

Background: The exact origin of the name isn't settled, but usbind's guide traces 'Chicago screw' to the fastener's use in Chicago's manufacturing and construction industries during the late 19th and early 20th centuries.

FAQ

Frequently asked questions

Can you add or remove pages after screw-post binding?

Yes. The two-piece posts unscrew, so pages can be added, removed or reordered and the posts threaded back through the same holes afterward. That's why screw-post binding suits documents that get revised again and again, sample books and presentations among them. Nothing about the covers or the punched holes has to change for this; only the post itself comes apart and goes back together around the stack.

Why doesn't a screw-post book open fully near the spine?

Bookbinder Suharu Ogawa's notes give the fix a specific measure: scoring the pages about an inch from the bound edge and leaving a quarter-inch hinge gap in the cover before threading the posts through. Without that preparation, the rigid posts clamp the stack tight at the punched holes, and pages can only pivot as far as that fixed zone allows before the clamped hardware stops them.

Is a screw-post document the same as a comb-bound one?

No. Both punch holes through a stack of loose sheets and expose hardware along the edge, but comb's molded plastic tines pry open by hand for re-editing, while screw-post's two-piece posts need actual unscrewing before pages can be added or removed.

Does screw-post binding lay flat?

Only partially. The posts hold the whole stack rigid at the punched holes, so pages pivot around that fixed zone rather than opening the way a spine-based binding does. Getting the book to open well near that edge takes deliberate preparation, scoring the pages and leaving a hinge gap in the cover, not something the rigid posts do on their own. See which bindings open flat.

What are Chicago screws?

They're the two-piece metal posts screw-post binding uses: a barrel driven in from one side of the punched holes, capped with a screw-in top from the other. Mybinding's guide calls them binding screws or post screws too, and usbind's account of the name traces 'Chicago screw' to the fastener's use in Chicago's manufacturing and construction trades in the late 19th and early 20th centuries.

References

Key references

suharuogawa.com: Scoring about an inch in, plus a quarter-inch hinge gap, lets the stack open
cool.culturalheritage.org: A solid, usually threaded device used in a post binder
mybinding.com: Two-piece Chicago screws unscrew for editing; extensions to roughly 5 inches
ironmarkusa.com: A barrel post and cap screw through both covers, exposed along the front spine
usbind.com: The name is believed to come from Chicago manufacturing and construction use

Every claim on this page traces to a fetched source, recorded with its URL and access date in the project's research files; Methodology explains how sources are checked. Last reviewed 2026-09-08.
