Lay-flat binding: floating cover spine

Typically used for: Printing Partners lists manuals, cookbooks, workbooks and reference books as typical lay-flat candidates, products that need a softcover shelf look but must still lie flat in use.

Terms used here: adhesive binding, cover, creep, endpaper, fold, fold-back, fore edge, head and tail, hinge, joint, leaf, opens flat, spine, text block

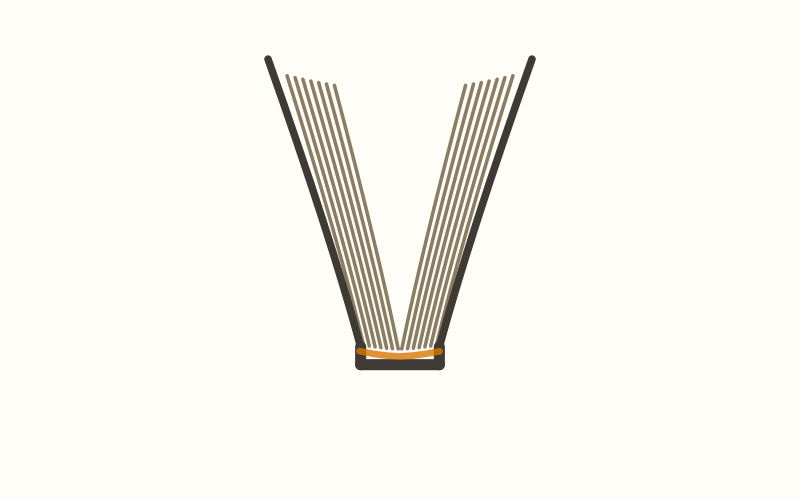

Because the cover's liner isn't glued to the text-block spine, the cover can hinge open on its own without dragging the text block's spine along with it.

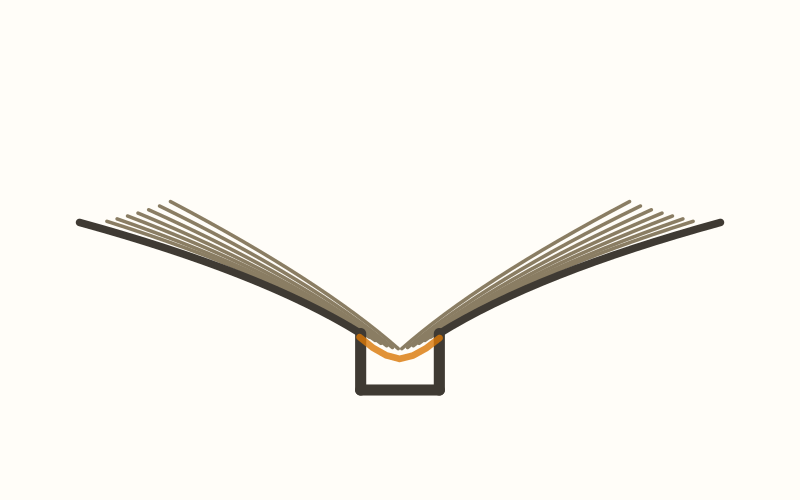

The two spines, cover liner and text block, separate visibly as the book opens, flexing apart rather than moving as one bonded piece.

That decoupling is what lets the book open flat without the cracking risk a directly-glued cover carries.

The book does not fold back on itself the way spiral or Wire-O pages can, even though it opens completely flat: the covers stay where they are rather than doubling around behind the text block.

Lay-flat is better understood as an attribute several constructions can achieve than as one single method: some builds sew the text block, others leave it unsewn, and some still grind the spine folds off the way a standard perfect binding does.

Printing Partners' own Otabind table calls the construction not as rugged as a hardcover case, even though its floating spine also lets it open flat.

Otabind, from the Otava Bookbinding Company in Finland, is the representative named system shown here; other lay-flat systems exist under other names, but this build doesn't name them without a source confirming how they work.

Printing Partners' guide notes that lay-flat construction costs more than a standard perfect-bound book and needs enough pages to build a spine.

That same Printing Partners table puts lay-flat's practical page range at 60 to 500 pages for a single bound volume.

Lay-flat construction is also described as hollow-backed, since the cover's spine stays detached from the consolidated text-block spine instead of gluing onto it directly.

Representative floating-liner construction shown, not to scale.

Limits of this schematic

• Otabind (Otava Bookbinding Company, Finland) is the originating named system shown as the representative example; other named lay-flat systems exist and are not verified here.
• Lay-flat describes an attribute achievable by several constructions — with sewn or unsewn text blocks, and sometimes with the spine folds ground off like a standard perfect binding — not one single universal method.
