Binding UnfoldedBinding method
Japanese stab binding: side-sewn loose sheets
Also called: stab stitch, yotsume toji, side-sewn binding.
Published · Reviewed
Japanese stab binding sews loose, single sheets side by side through a row of holes punched near the spine edge, wrapping the thread around that edge in a visible pattern instead of running it through any fold.
- Opens flatNo
- Fold-backNo
- EditableNo
How Japanese stab binding opens
Drag to open the book. With the slider focused: ←/→ moves 1%, Shift+←/→ 5%, PgUp/PgDn jumps to the next state, Home/End to closed or fully open.
Closed state (shown without JavaScript)
Opening states
- 1. Closed

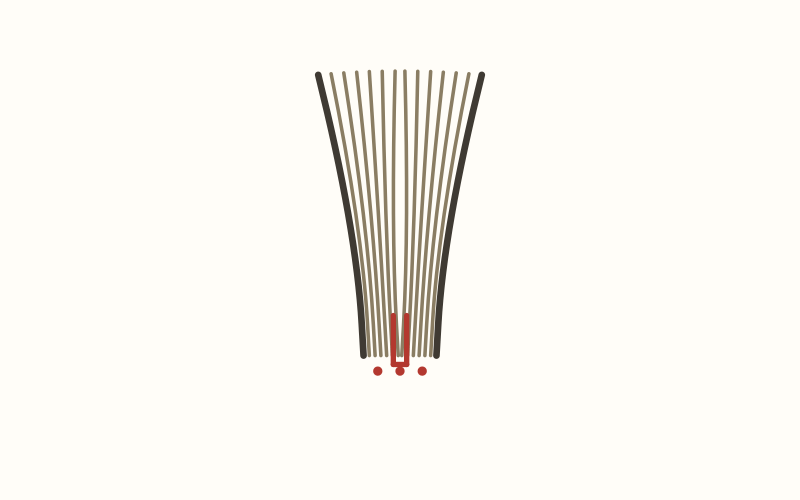

- 2. Cover lifting

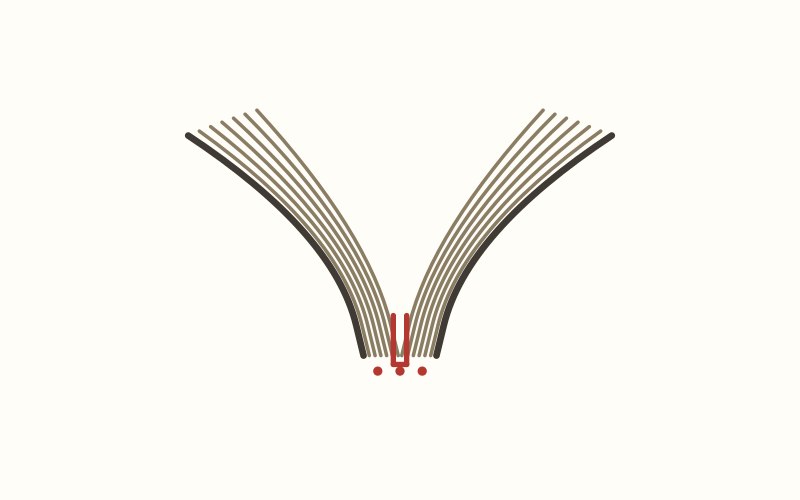

- 3. Pages restricted

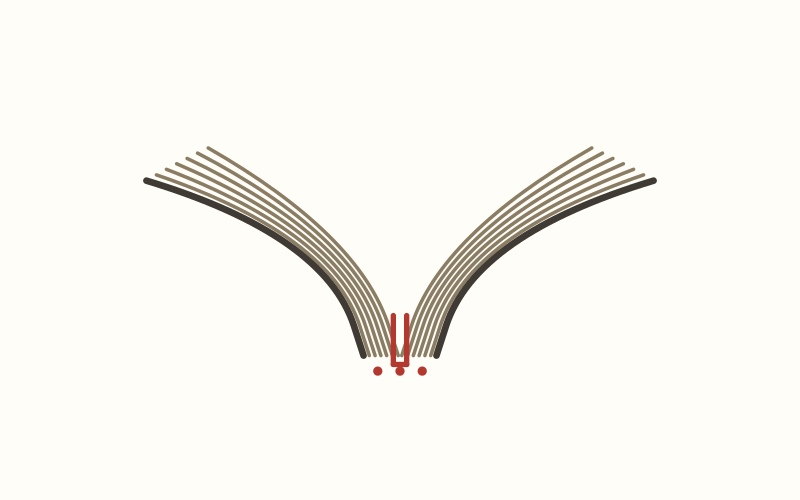

- 4. Practical open
Recognize it
How to recognize Japanese stab binding
Typically used for: Highland Print Studio calls it an adaptable way to bind single sheets of paper into an individualized book, and Paper Craft Panda's guide names single-sheet bindings, printed art books and manuals as its best uses, calling it approachable for newer book makers too.
- Thread wraps around the bound edge through a margin of holes set back from the true spine, rather than running through any fold.
- Pages are loose, single sheets stacked together rather than nested folded signatures.
- A stitched pattern of holes shows along the outer bound edge, distinct from a smooth covered spine or a row of staples.
Terms used here: cover, creep, fold, fold-back, fore edge, head and tail, leaf, opens flat, punched holes, sewing station, sheet, spine
Mechanics
What moves when it opens
There's no fold anywhere in this construction, so the whole stack pivots at the sewn margin line rather than opening at a spine the way a folded-signature book does.
That fixed margin holds the pages a short distance in from the true edge, which is what limits how far the book can open before the sewn line stops it.
The stitching itself stays visible on the outside of the stack the entire time, wrapping around the bound edge rather than disappearing into a cover.
Anatomy
Japanese stab binding anatomy: pages, cover, thread
- Pages: The individual leaves, or folded signatures, that make up the text block.
- Cover: The outer wrap or boards enclosing the text block.
- Thread: The thread sewn through holes punched near the spine edge of each loose sheet, then wrapped around that edge in a visible pattern.
At a glance
Japanese stab binding at a glance
| Sheet organization | Loose leaves |
|---|---|
| Joining mechanism | thread sewn through holes punched near the spine edge of loose single sheets, wrapping around the bound edge in a visible pattern |
| Spine | Exposed |
| Opens flat? | No. The sewn margin holds pages at a fixed pivot line that won't lie flat. |
| Fold-back? | No |
| Editable after binding? | No. The thread passes through every sheet in the stack at once. |
Compare
Japanese stab binding vs. screw-post binding and pamphlet stitch
Often confused with
Screw-post bindingNeither opens freely near the bound edge: stab binding fixes a zone there with thread through sewn holes, while screw-post clamps the same kind of zone with rigid metal posts instead.
Often confused with
Pamphlet stitchThread and no adhesive link them, but pamphlet stitch sews through an actual fold in one signature, while stab binding sews through the flat, unfolded margin of loose single sheets.
By contrast
Spiral bindingSpiral binding punches its holes to let every page rotate freely around a coil, the opposite of stab binding's fixed thread margin that deliberately restricts how far pages travel.
See also
Smyth-sewn bindingBoth are sewn, but Japanese stab threads loose single sheets through a margin beside the spine, so pages pivot at that sewn line and the book resists opening, while Smyth-sewn's thread passes through each signature's own fold and lets the block open flat.
Variations
Variations and limitations
The four-hole Yotsume Toji pattern shown is the common baseline; Highland Print Studio notes the Korean standard uses five holes instead, a regional variation on the same side-sewn technique.
Highland Print Studio's account of the technique's Edo-period practice also notes parallel use during the Qing dynasty in China, spanning 1636 to 1912.
Because the sewn margin sits some distance in from the true spine edge, text and margins near that edge need to allow for it; this isn't a fold that opens freely.
Paper Craft Panda's same guide adds that the technique is a poor fit for scrapbooks, sketchbooks, watercolor books and journals, on the same 'great for' list that recommends it for single sheets.
Representative four-hole pattern on single sheets shown, not to scale.
Limits of this schematic
- Representative four-hole Yotsume Toji pattern shown; five-hole, hemp-leaf (Asa-No-Ha), tortoiseshell (Kikko) and noble (Koki) patterns use different station counts and layouts.
- The book will not lay flat when opened, and pages have a restricted opening range near the sewn margin.
Background: Highland Print Studio's guide places Japanese stab binding's practice in Edo-period Japan, roughly 1603 to 1867.
FAQ
Frequently asked questions
Are all Japanese stab-bound books sewn with the same stitch pattern?
No. The four-hole Yotsume Toji pattern is the most common baseline, and other named patterns rearrange the same side-sewn stitching across more or differently placed stations. Highland Print Studio notes the Korean standard uses five holes instead of four, still sewing loose single sheets through holes punched near the spine edge. Whichever pattern a given book uses, the sewn margin near that edge is what actually governs how the book opens, not the pattern itself.
Do the stitching patterns (hemp-leaf, tortoiseshell, noble) change how the book opens?
No. Paper Craft Panda names four patterns: Yotsume Toji, Asa-No-Ha Toji (hemp leaf), Kikko Toji (tortoise shell) and Koki Toji (noble). Whichever pattern the stitching follows, the same sewn margin governs how far the book opens, since the pattern only changes the look of the stitching, not where it sits.
Does Japanese stab binding lay flat?
No. There's no fold anywhere in this construction, so the whole stack pivots at the sewn margin line instead of opening at a spine the way a folded-signature book does. That fixed margin sits a short distance in from the true edge, and it's what stops the pages from opening any further, no matter which stitch pattern runs along it. See which bindings open flat.
What is yotsume toji (four-hole binding)?
Yotsume toji is the standard pattern for Japanese stab binding, and Highland Print Studio's own account of the technique translates the name as 'four holes.' It's sewn through a row of holes punched near the spine edge, and the same guide notes the Korean standard uses five holes instead, a regional variation on the same side-sewn technique rather than a different one.
References
Key references
- blog.papercraftpanda.com: Single sheets sewn near the spine edge; the book does not lay flat when opened
- highlandprintstudio.co.uk: Side-sewn single sheets, with Yotsume Toji the standard four-hole pattern
Every claim on this page traces to a fetched source, recorded with its URL and access date in the project's research files; Methodology explains how sources are checked. Last reviewed 2026-09-07.
